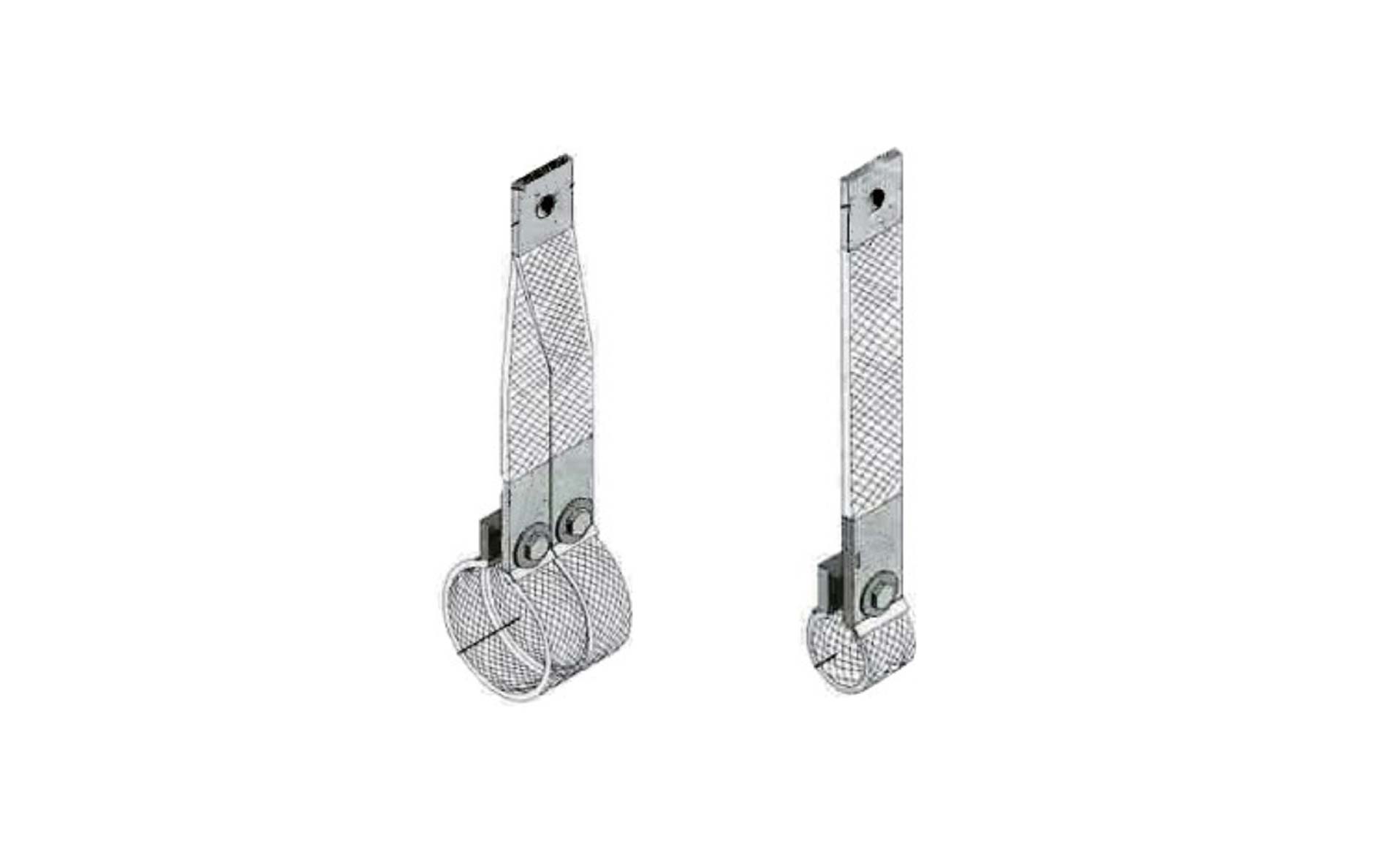

This is a set of connecting accessories for silicon carbide heating elements, specifically a G-type aluminum conductive strip assembly, used to connect the cold end of the silicon carbide heating element to the power supply system. It represents an enhanced conductive connection solution.

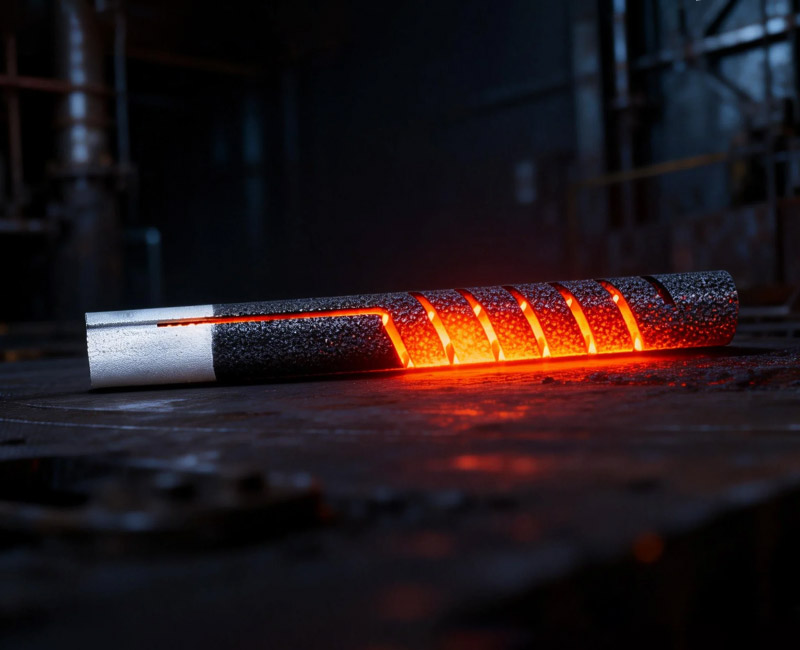

Reliable silicon carbide heating elements for industrial furnaces
| Silicon carbide rod diameter (mm) | model | Width (mm) | Rated current (A) | Aperture (mm) |
| 13 | D-13 | 24 | 50 | 10 |
| 16 | D-16 | 24 | 50 | 10 |
| 19 | D-19 | 24 | 75 | 10 |
| 25 | D-25 | 24 | 100 | 14 |
| 28 | D-28 | 24 | 75 | 10 |
| 32 | D-32 | 24 | 100 | 14 |
| 35 | D-35 | 51 | 200 | 14 |
| 38 | D-38 | 51 | 200 | 14 |
| 44 | D-44 | 51 | 200 | 14 |
| 50 | D-50 | 51 | 200 | 14 |
| 54 | D-54 | 51 | 200 | 14 |
| 64 | D-64 | 51 | 200 | 14 |
| 70 | D-70 | 51 | 200 | 14 |
| 76 | D-76 | 51 | 200 | 14 |
Product Features
• Structural Design: It is a complete assembly integrating aluminum braided strips, metal compression plates, and insulating components, secured by bolts. This structure provides a larger contact area, superior conductivity, and better vibration resistance compared to ordinary aluminum strips.
• Material Performance: The main body uses high-purity aluminum braided strips, offering good flexibility and the ability to absorb the thermal expansion and contraction deformation of silicon carbide rods at high temperatures, preventing loose connections.
• Functional Advantages: The compression plate design enables stable transmission of high currents, reduces contact resistance, minimizes heat loss, and improves the safety and reliability of the entire heating system.
Core Parameters (See Table)
| Suitable silicon carbide rod diameter (mm) | model | Width (mm) | Rated current (A) | Aperture (mm) |
| 13、16 | D-13/D-16 | 24 | 50 | 10 |
| 19 | D-19 | 24 | 75 | 10 |
| 25、32 | D-25/D-32 | 24 | 100 | 14 |
| 35 and above | D-35 and above | 51 | 200 | 14 |
It is primarily used in high-power, high-current industrial furnaces and laboratory electric furnaces, and is a key component in ensuring the stable operation of silicon carbide heating systems. It is especially suitable for use in conditions involving frequent starts and stops or vibrations.
