This is an SG-type silicon carbide heating element, a high-performance high-temperature electric heating element, and also the product with the highest temperature resistance rating among these silicon carbide heating elements.
Reliable silicon carbide heating elements for industrial furnaces

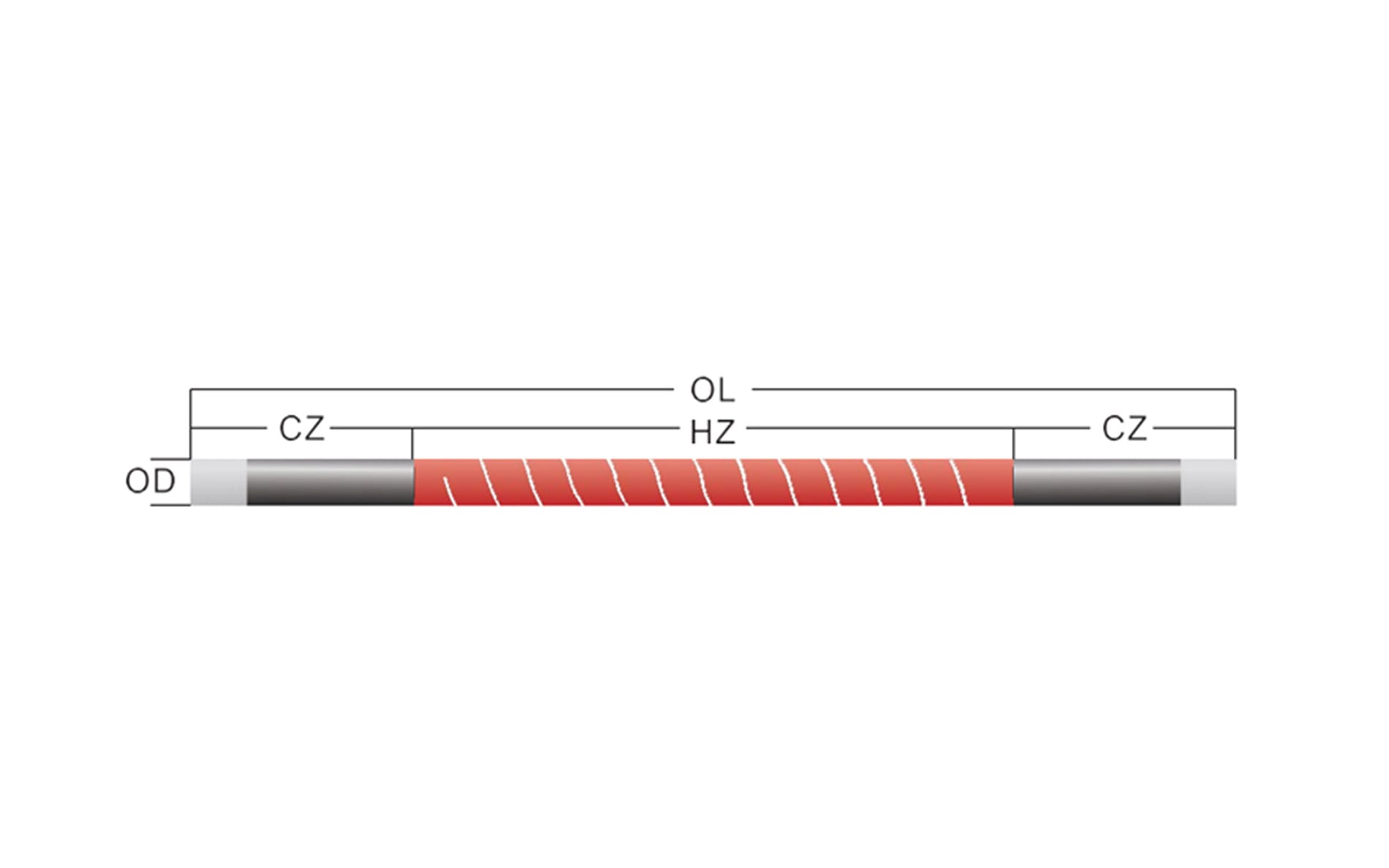

| Model: SG |
| Diameter: OD |
| Heating element length: HZ |
| Cold end length: CZ |
| Total length: OL |
| Maximum operating temperature: 1650 degrees Celsius |
Structure and Features:
• Structure: Features a uniform diameter rod design with a spiral grooved heating section in the middle and cold ends and white terminal connectors at both ends.
• Material: The main body is made of silicon carbide material. The spiral groove design increases the heating area, improving heat radiation efficiency and heating speed.
• Temperature Performance: The maximum operating temperature can reach 1650℃, which is higher than the temperature limit of DB and DH models, making it suitable for ultra-high temperature applications.
Core Parameters:
• Heating Zone Length (HZ): The length of the heating section with spiral grooves, which determines the heating power and radiation area.
• Cold End Length (CZ): The length of the cold sections at both ends, used for electrical connection to prevent overheating of the terminals.
• Overall Length (OL): The total length of the heating section and the two cold ends.
• Diameter (OD): The uniform diameter of the entire rod, ensuring strong compatibility.
Applicable Scenarios:
It is mainly used in industrial furnaces requiring ultra-high temperature environments, such as high-end ceramic sintering, special glass melting, crystal growth furnaces, and ultra-high temperature heating equipment in laboratories.
Please leave your contact information, and we will provide you with the most suitable solution.
Our silicon carbide heating elements are optimized for stability, efficiency, and durability under continuous high-temperature working conditions.
